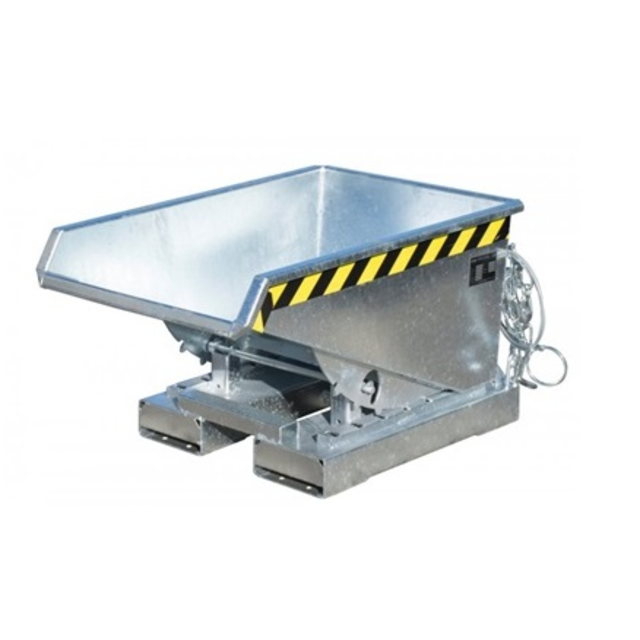

Chip Container EXPM 150L Mini Tipper Container with Rollover System

Galvanized model

Product specifications:

• Length: 960 mm

• Width: 640 mm

• Height: 540 mm

• Tipping height: 455 mm

• Weight: 76 kg

• Payload: 750 kg

• Volume: 150 L

• Material: steel

• Finish: galvanized

• Suitable for forklift

• Steel thickness: 3 mm

• Sheet steel with all-round edge profile

• Stable base frame with drive-in tubes

• Drive-in shaft dimensions: (A) 170 mm x (B) 200 mm x (C) 80 mm

• Favorable load center

• Applications: wood, metal, aluminum, stainless steel, plastic, glass, sand, stones ...

• With CE marking

Many options possible:

• Option: safety set

• Options: choice out of RAL colors and galvanized model

• Options: wheels in Nylon, PU or Elastic Rubber (supplied in box)

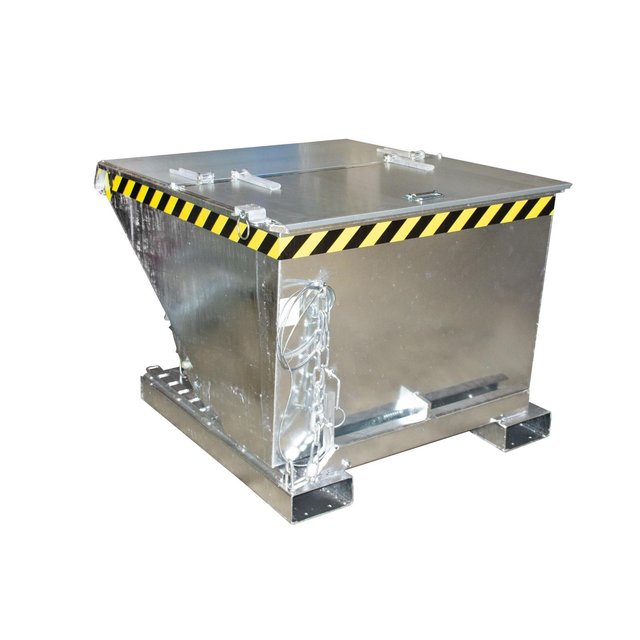

• Options: cover galvanized on both sides to open

• Options: oil and watertight with drain tap

• Options: trailer hitch with drawbar (upon request)

Chip Container Suitable for forklift.

SBTCEXPM series

Excellent solution for collecting and transporting all kinds of bulk materials, when you need a mini container. The unrolling system ensures easy and controlled emptying, and it is also protected against unintentional slipping and tipping.

The SBTCEXPM series is characterized by it's small size,Excellente solution pour la collecte et le transport de toutes sortes de matériaux en vrac, quand vous avez besoin d'un mini conteneur. safety, versatility and large loading and carrying capacity. The containers are durable and robust.

For extra safety, each container can be equipped with a safety set consisting of a safety chain and pull cord.

Galvanized model, but also available in high quality laquer RAL5012 blue, RAL2000 orange, RAL3000 red, RAL6011 green, RAL7005 gray.

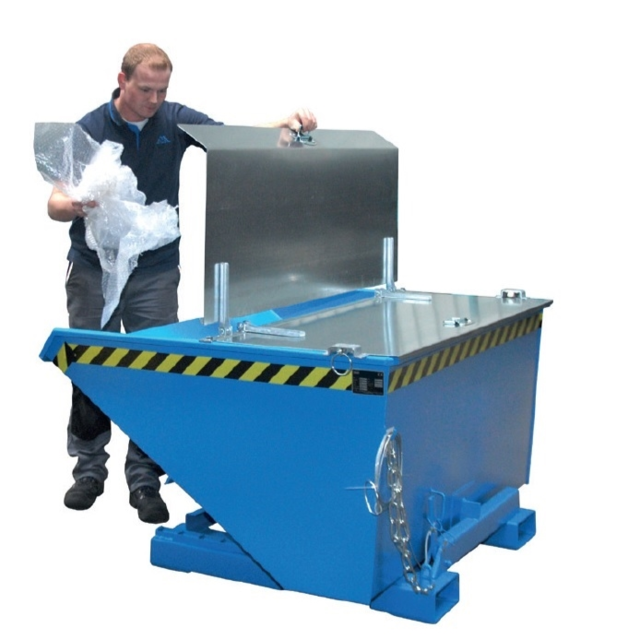

Several options are possible, such as ordering wheels in Nylon, PU or Elastic Rubber version. These come in a box. You can also order a lid, but also oil and watertight with drain tap is possible. To do this, click on the options.

Tipping container applications: wood, metal, aluminum, stainless steel, plastic, glass, sand, stones ...

Available sizes: 150L, 225L, 275L

For questions or advice you can always contact us via email [email protected] or call  +48 789 339 154
